teeinblue - Adding Print-area in your Product Mockup

Printarea of Product Base

What is Printarea

A print area is an area that can be printed on a POD product.
POD products can have different print-areas. For example, a mug usually has one print-area which is wrap-around the outside of the mug; while a T-shirt can have 2 print-areas: front & back...

Artwork will be placed within a print-area to send to fulfillment (see how Artwork fits on Printarea).
Therefore, printarea will decide the size of the order's design sent to fulfillment.
Also, printarea will be used to display artwork on product mockup.

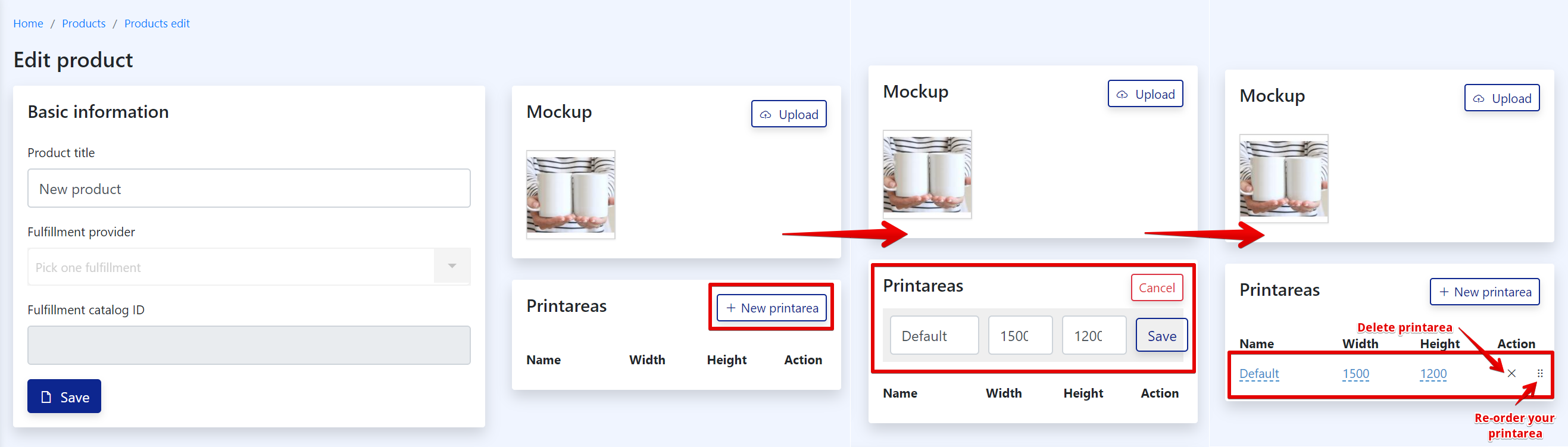

Create a default Printarea

  1. Choose a product base to edit
  2. Click on button "New Printarea"
  3. Add a key name for the printarea (eg. Front, Back, Side...)
  4. Add width and height (in pixel).
  5. Click on Save


Printarea name (printarea key)

Printarea name is used to identify where this printarea belongs to.
Some providers require the exact key name, like Front/Back, to print on correct position.

Printarea size

Input number of width and height in pixel. They should match the requirement of your fulfillment provider.

Number of printareas

Number of printareas depends on the product base and equals with the number of artwork to print. Therefore:
  1. You can create up to 2 default printareas to print 2 different artworks.
    For example: a tshirt can have an artwork on Front printarea, and another one on Back printarea.
    Then use the Map artwork to printarea feature in Campaign to decide which artwork will be printed on which printarea.

  2. Only create 1 default printarea if there is only 1 artwork.
In case a product base has various sizes of printarea, you should add only 1 default printarea.
Other sizes can be configured with Custom Variant Printarea feature.
For example: A mug has only one printarea. But there are 2 variants of mug: 11oz & 15oz, so there will be 2 sizes of printareas:
  1. 11oz: 2700 x 1050 px
  2. 15oz: 2700 x 1140 px
Then you should set the default printarea as 11oz (2700x1050). And customize the printarea size of variant 15oz to the correct size (2700x1140). So when a customer orders a mug with variant 15oz, the artwork will be generated in the 15oz size (2700x1140) instead.


Customize printarea of Variants

For products having multiple variants, each variants is a different size, you can create custom printarea for variants to replace the default printarea.
Scroll down to the Variants table of a product base, click to select a line of variant, and click the "Customize Variant printarea" button.



For detailed instruction of this feature, please read: Variants of Product Base.


Map artwork with Printarea in Campaign

When you create a Campaign, you need to select artworks and product bases in that campaign.
All printareas of selected products will be listed so you can select an artwork to map with each printarea.


Example: "Cat Face" artwork is on the Front prinarea of the T-shirt, and "Quote" is on the Back.

This mapping will affect 2 things:
  1. Show correct Artwork on Mockup
  2. Send correct Artwork to correct print side to fulfillment
As example above, when sending an order created from this campaign to fulfillment, the artwork "Cat Face" will be printed on Front, and the "Quote" will be printed on Back.

Set up printarea in Mockup

  1. Edit a mockup in Product Base or in Campaign. Mockup Editor will appear.

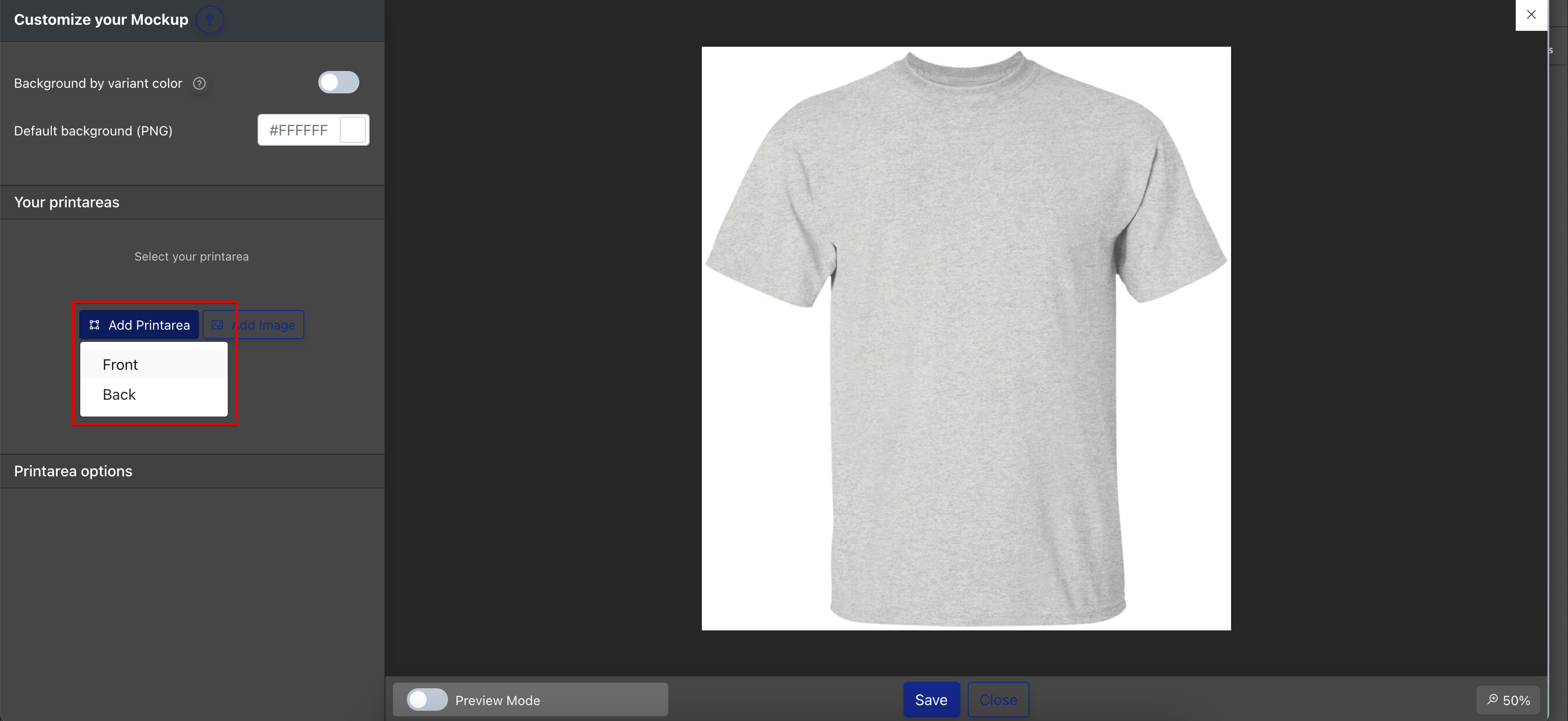

  2. Click on "Add Printarea" button to add the correct printarea to a mockup image.

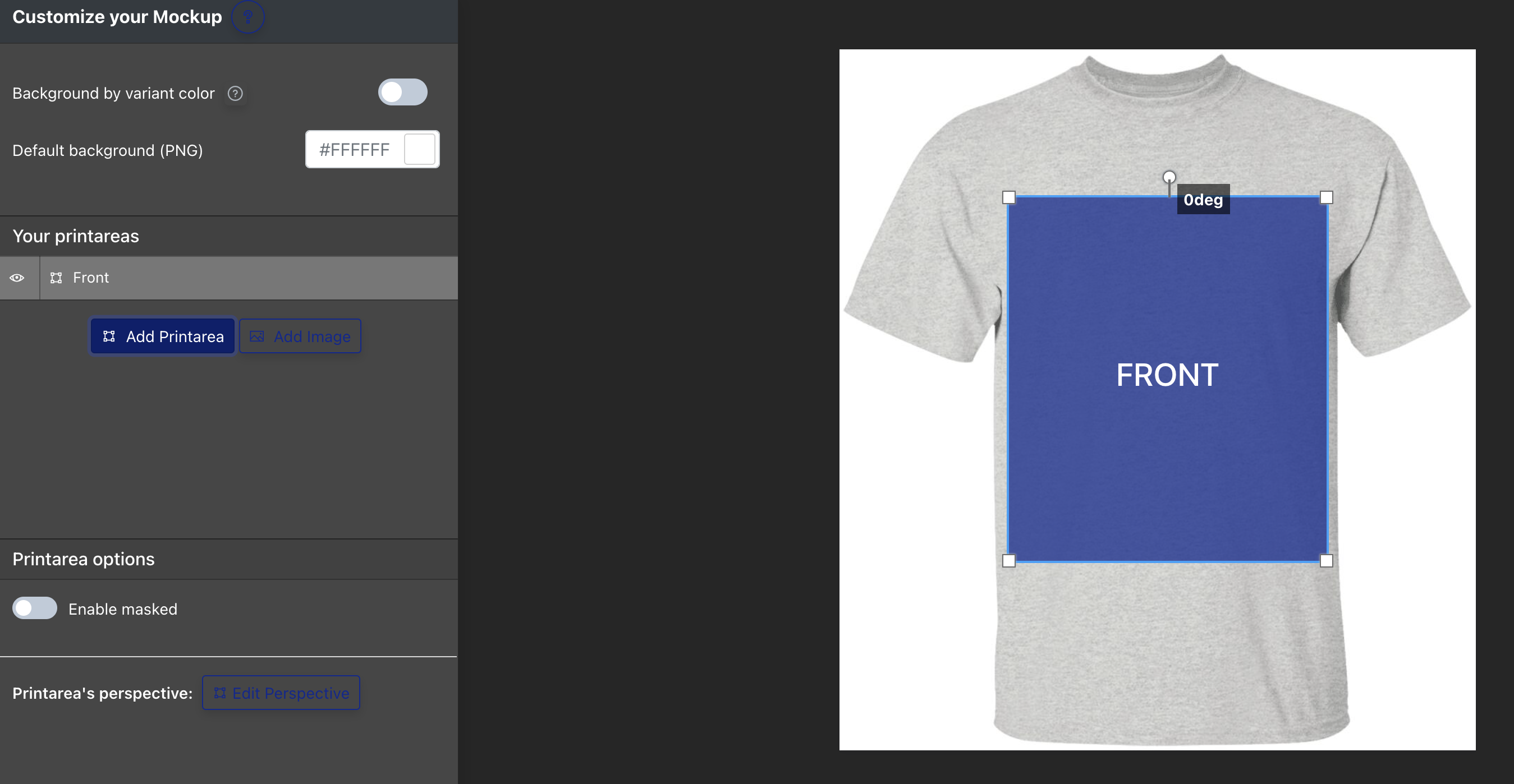

    For example: Add printarea "Front" to the mockup of the Tshirt's front side




Width and height when creating Printarea will fix the ratio of printarea in mockup.

For detailed instruction of Mockup Editor, please read this article: Mockup of Product Base.


Change Printarea in Order

If you make a change to printarea in Product base, this change will NOT apply to the order created before that.

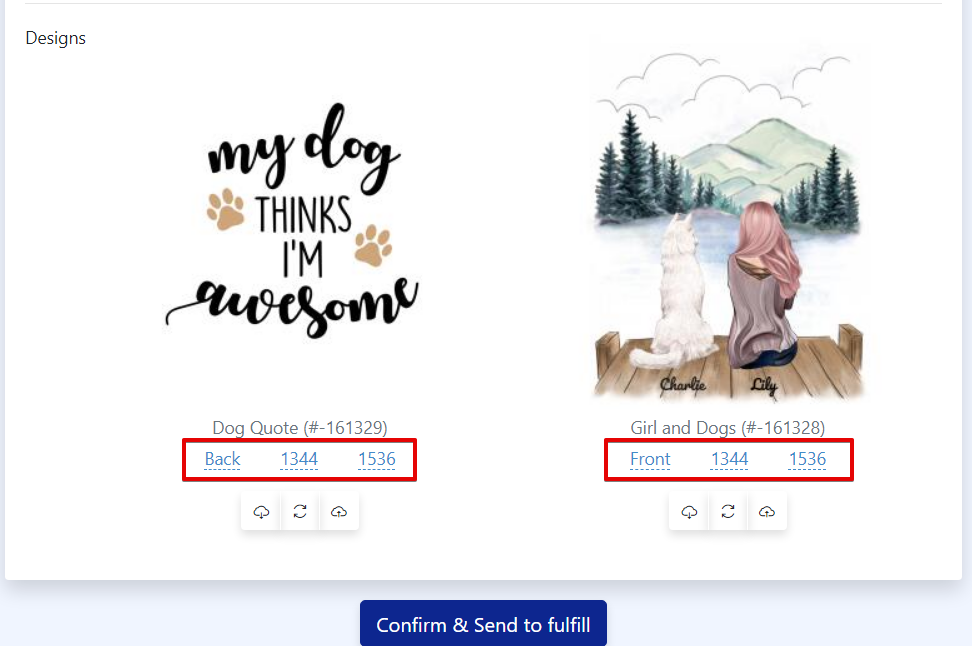

But you can still change the printarea key & size of an order design in Order Details, to make sure it's correct before sending to fulfill.


Click on the printarea name or size to change it. The change will only apply to that order design.
After changing printarea size, remember to click the "Re-generate" button to render the order design in the new size.
