teeinblue - How to render design image in Shopify?

How to set up: Customization design images

We prepared a custom coding method to help you show the design customer created (customization design) in different areas in Shopify.

In this instruction, we will instruct you to add customization design in Cart and in Order confirmation email.
If you need to place it else where, feel free to contact us.

Show design in Cart



STEP 1: Identify class for the rendered design image placement

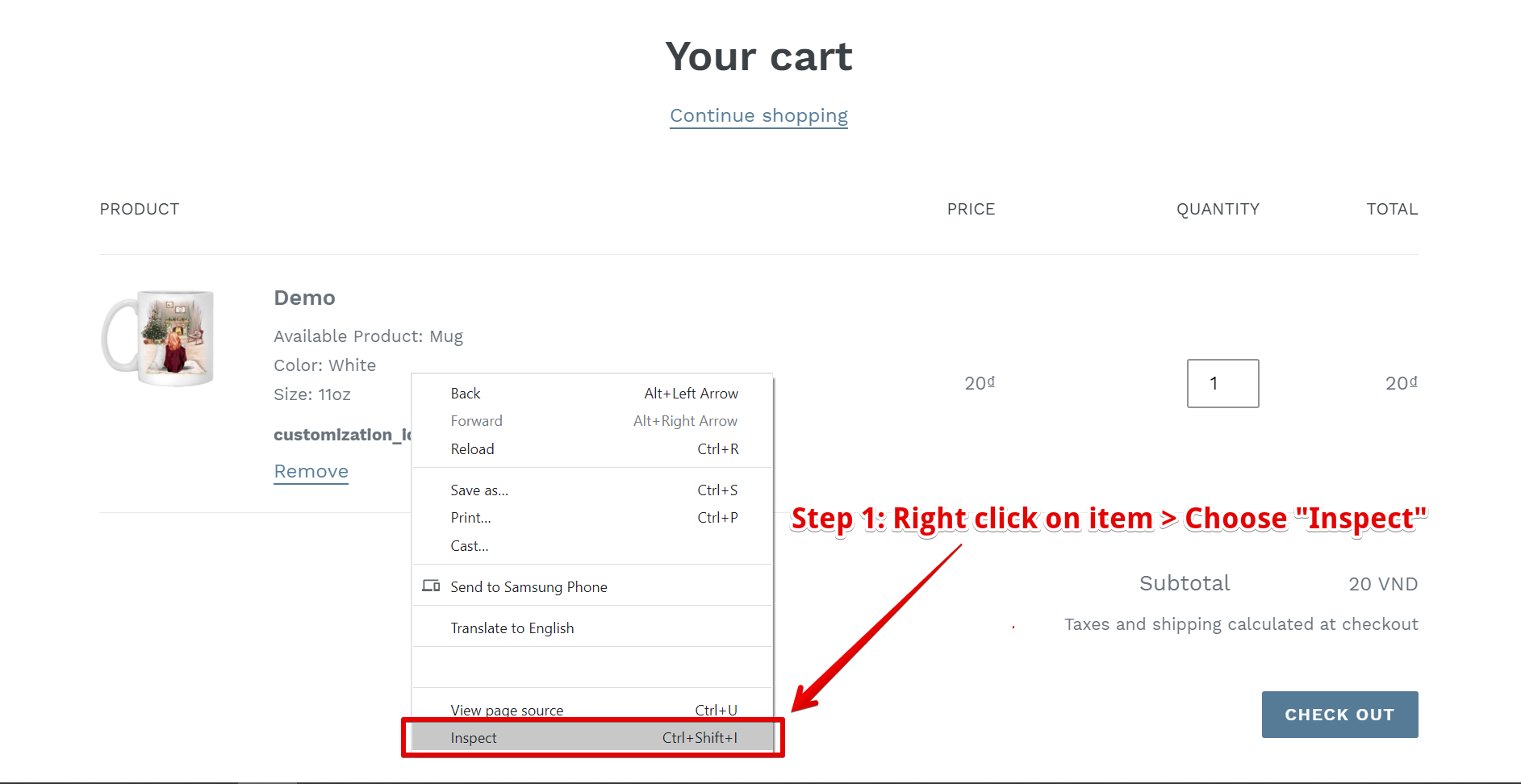

  1. Go to Cart page > Right click > Inspect the item in cart

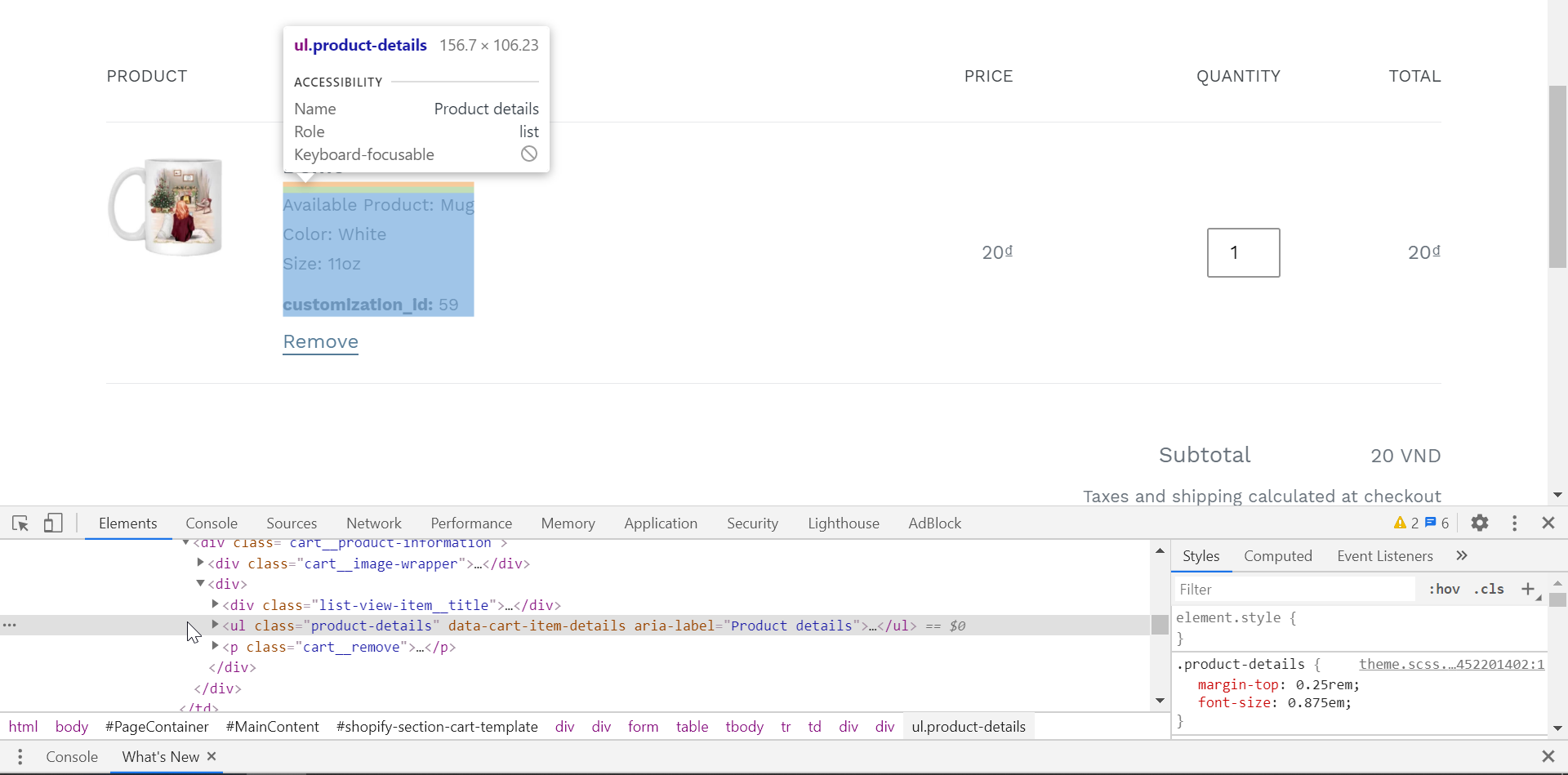

  1. The developer tool will appear and auto detect the HTML tags of your selected gallery

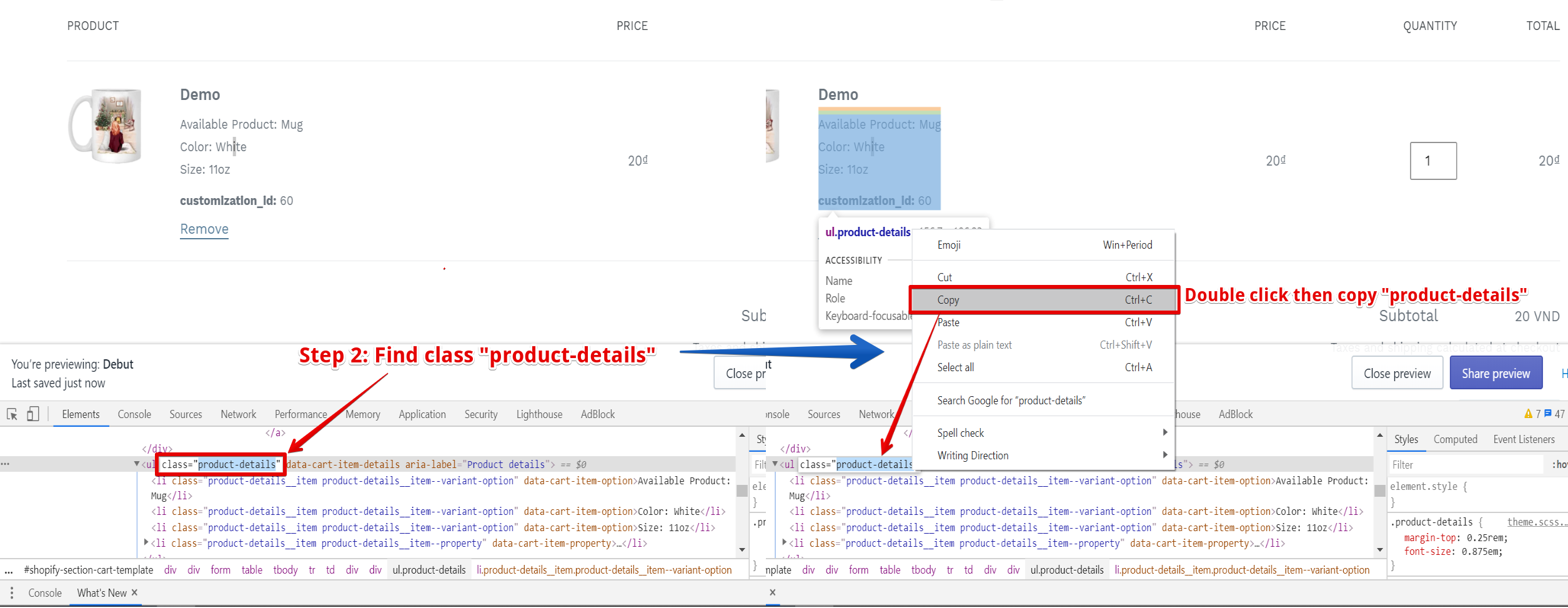

  1. Find a class named "product-details". Double click on "product-details" then copy it.

Note: Class name can be different in different theme

STEP 2: Add teeinblue's script code to your cart

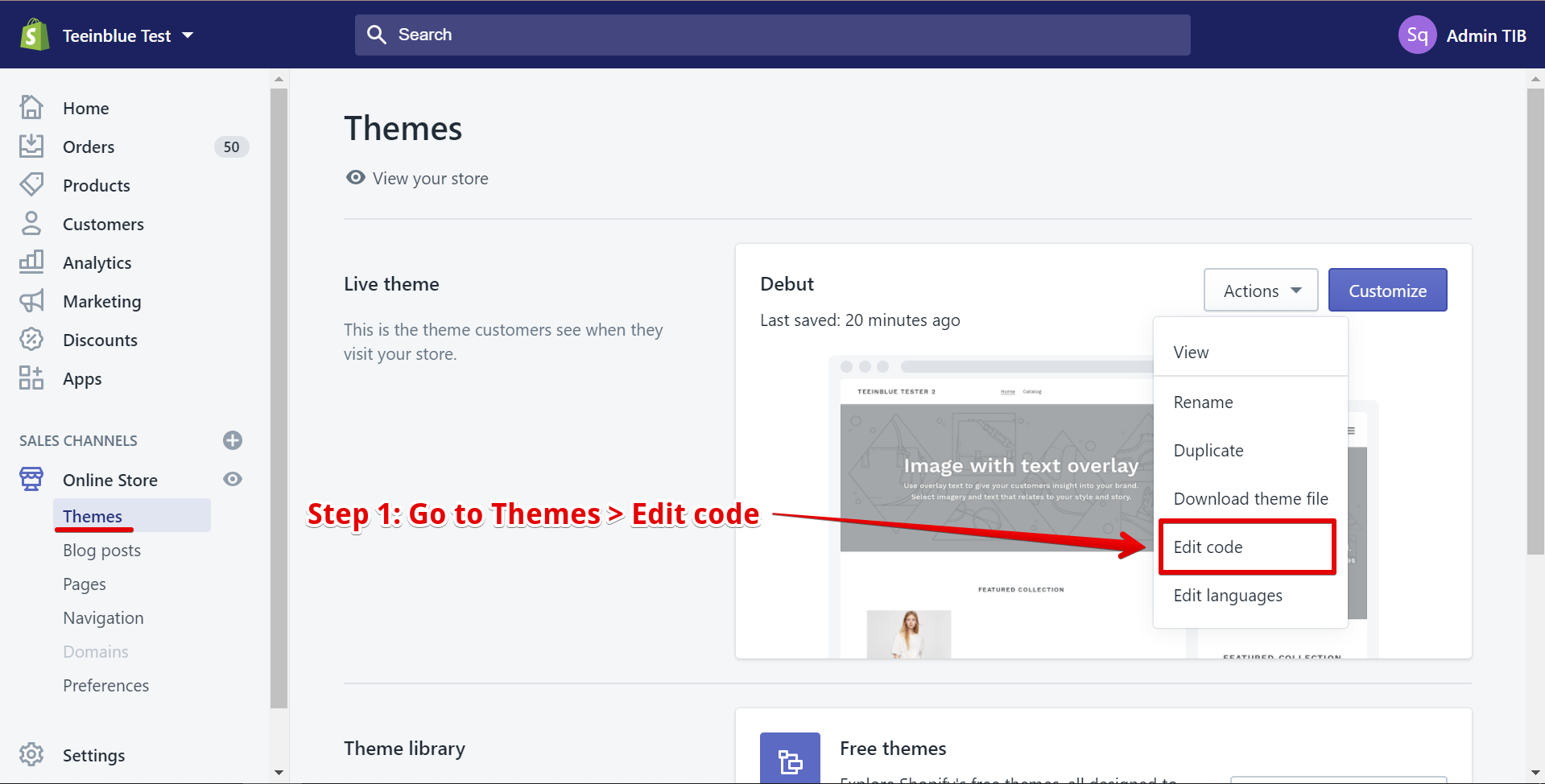

Log in to your Shopify store admin > Go to Themes > Edit code

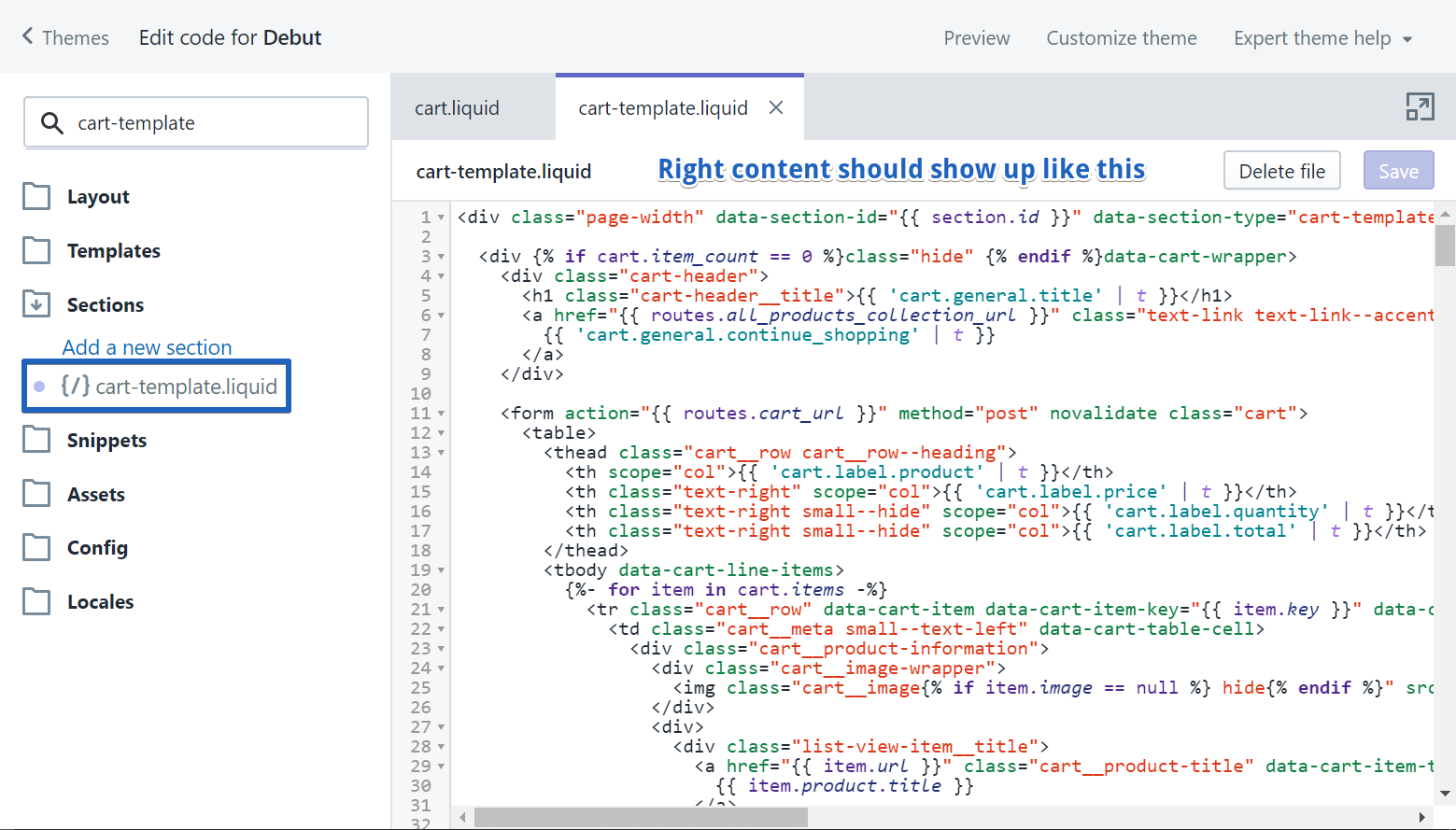

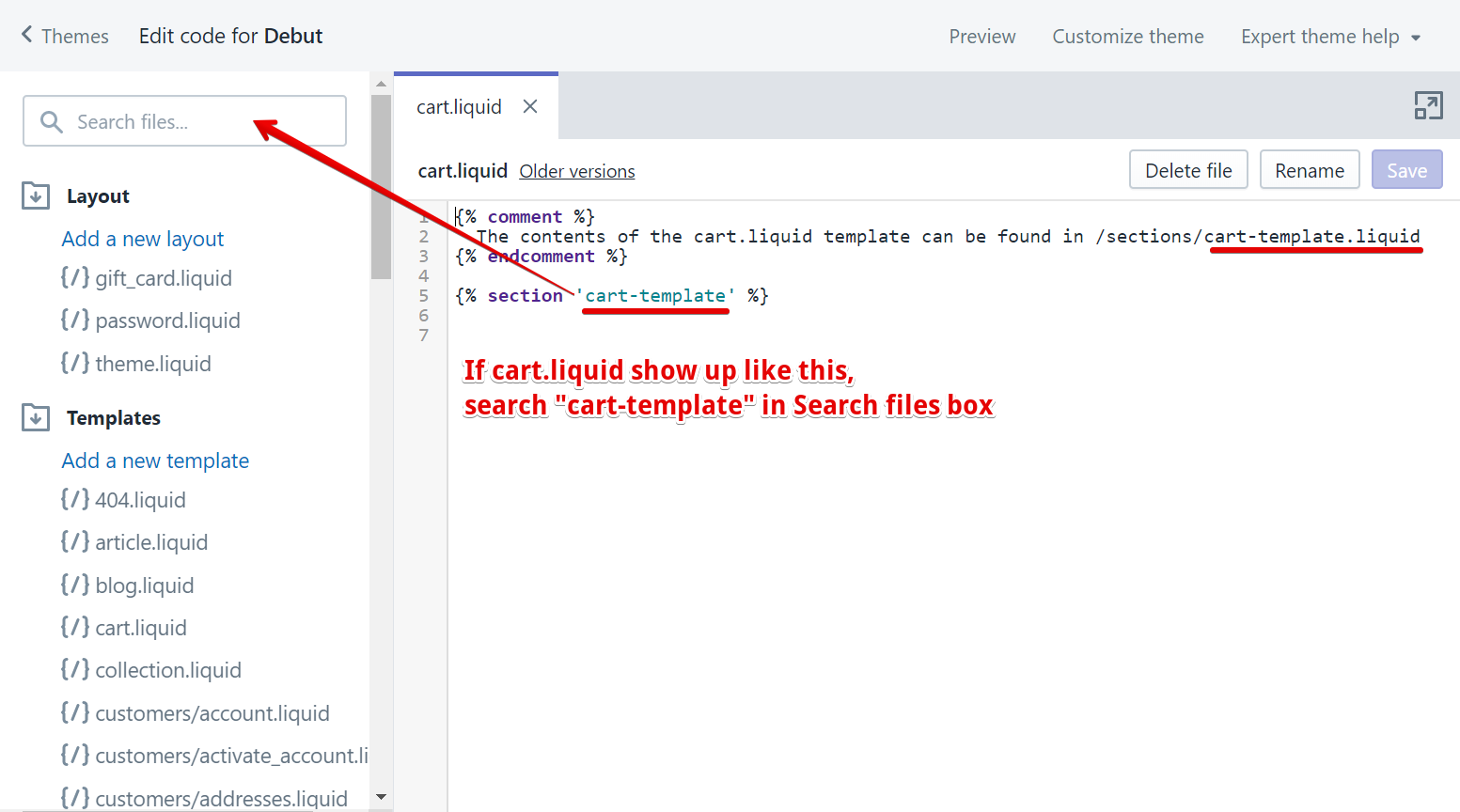

  1. Look for section called "cart.liquid". If there's no content in cart.liquid, please search for section "cart-template.liquid".

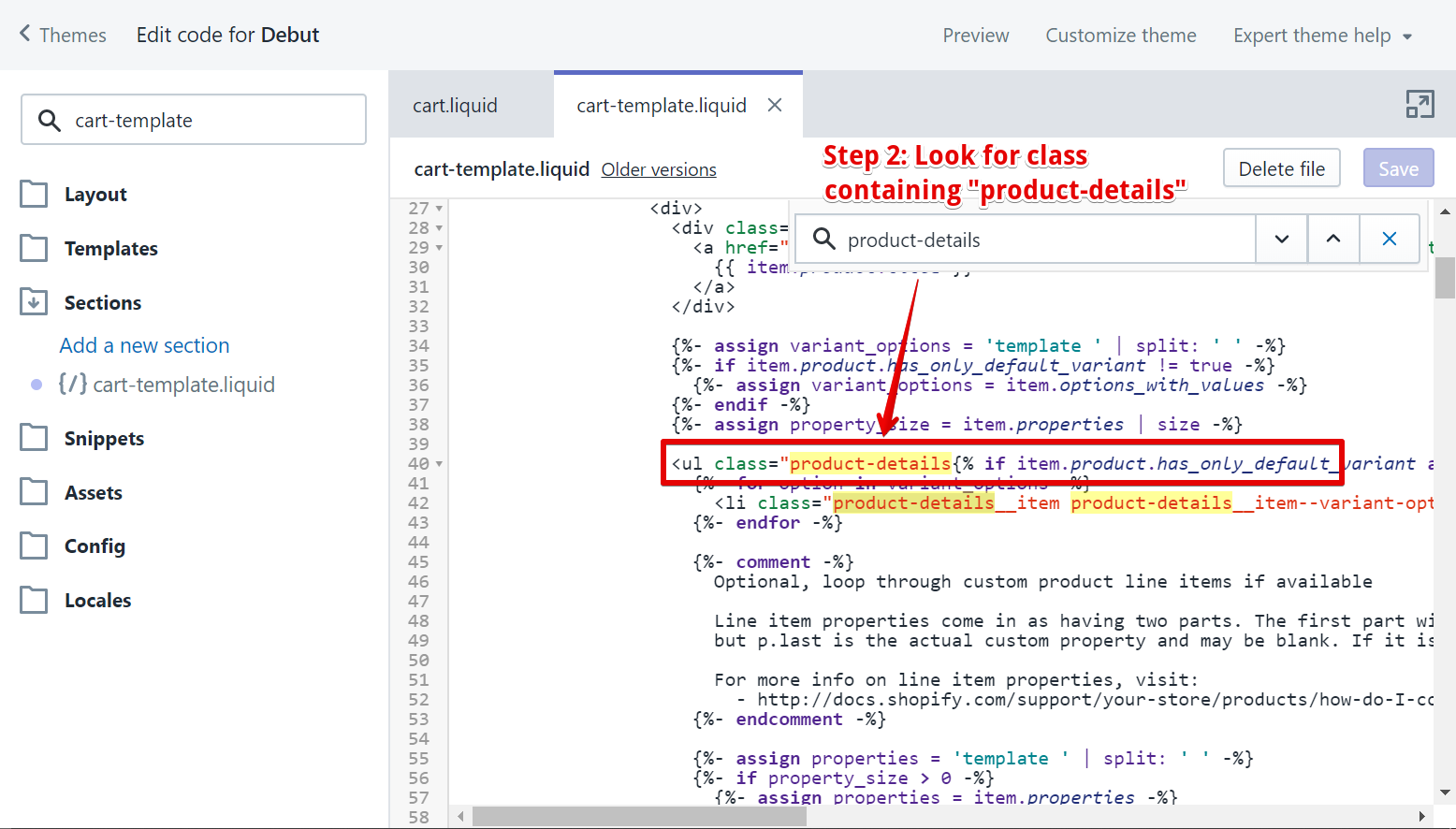

  1. In cart-template.liquid, press key combination Ctrl + F (For iOS system, it should be Command + F) to open Search box, then paste "product-details" in search box to search for class


  1. Click on the first "product-details" text on line <ul class>, it'll highlight the <ul> line and its </ul> tag. Scroll down and look for the highlighted </ul>.

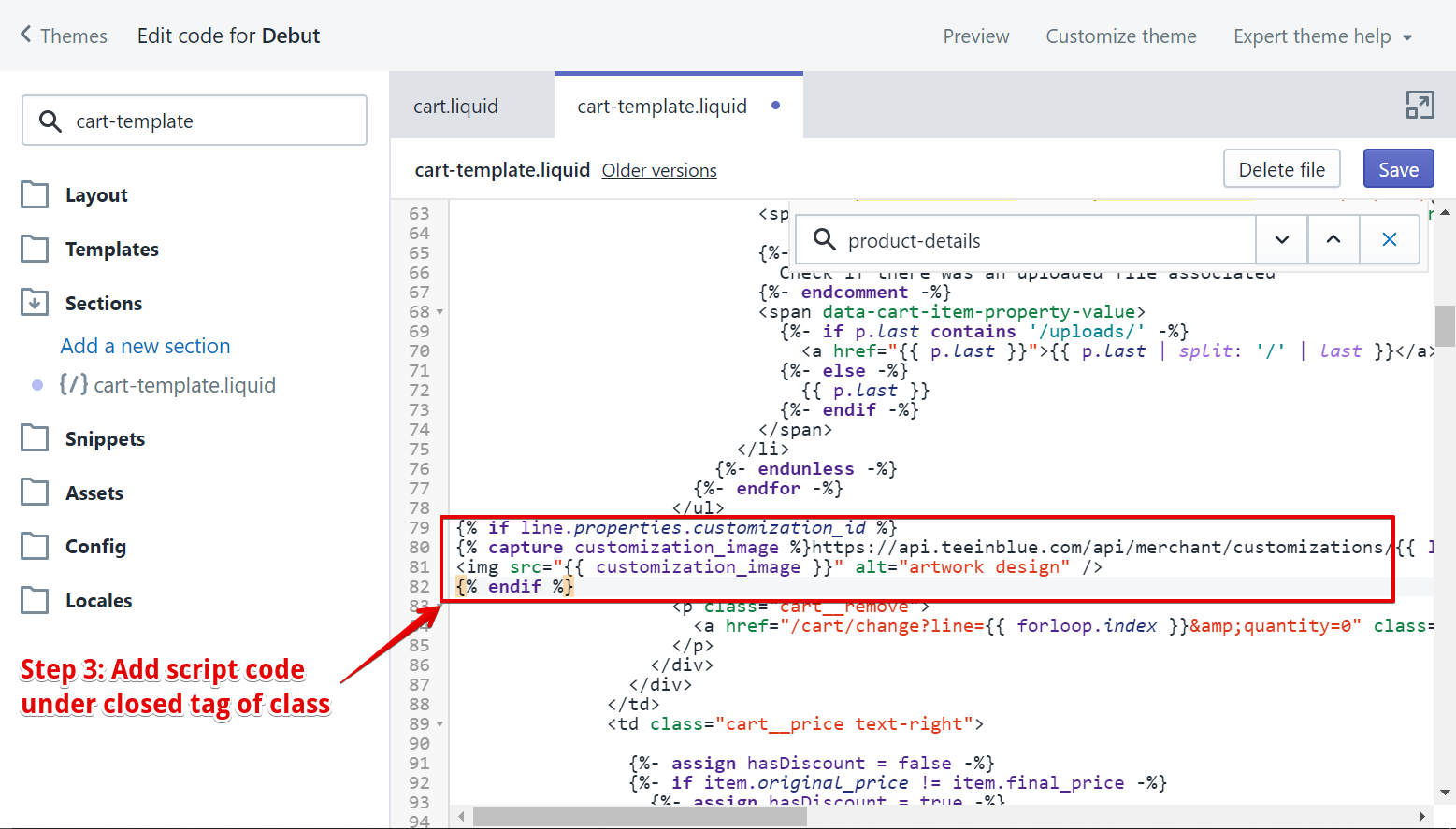

  1. Add the script code below right under </ul>. Then Save it to activate design in cart.
{% if item.properties.customization_id %}
  {% capture customization_image %}https://cdn.teeinblue.com/customizations/{{ item.properties.customization_id }}.jpg{% endcapture %}
  <img class="tee-img-fluid" src="{{ customization_image }}" alt="artwork design" />
{% endif %}

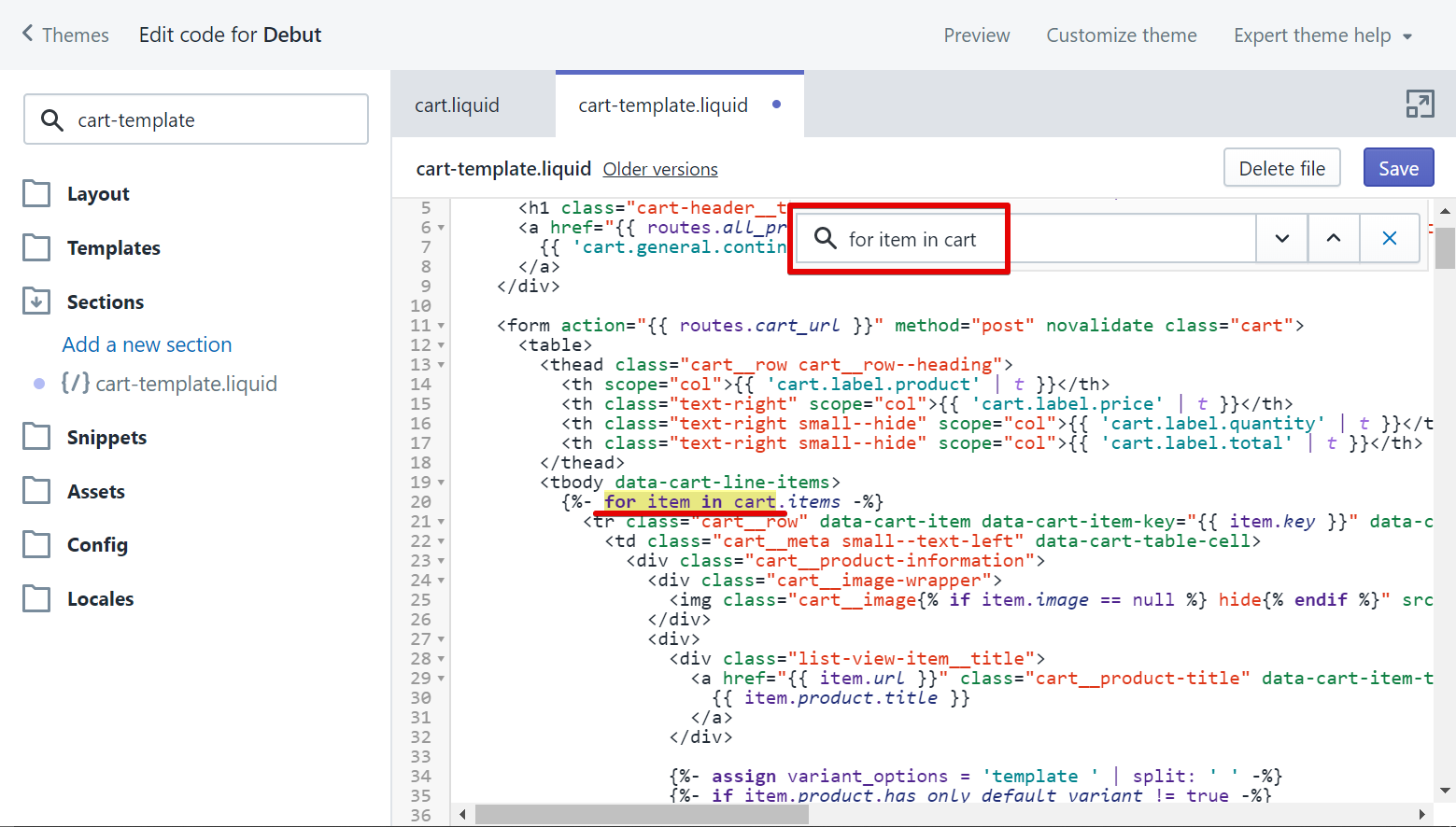

Since product in cart can be displayed in line or item differently based on theme, to correctly adding script code, please press Ctrl + F (Command + F for iOS) and search between "for line in cart" or "for item in cart" or "for line_items in cart".


If search result is "for item", product is displayed in item.
-> Use the script above normally.

If search result is "for line", it indicates that your product in cart is displayed in line
-> Replace the "item" in the script above to "line". Like this:
{% if line.properties.customization_id %}
  {% capture customization_image %}https://cdn.teeinblue.com/customizations/{{ item.properties.customization_id }}.jpg{% endcapture %}
  <img class="tee-img-fluid" src="{{ customization_image }}" alt="artwork design" />
{% endif %}
If search result is "for line_item", product is displayed in line_item. -> change the "item" in the script to "line_item".


If you find it difficult to follow this instruction, please contact us for further support.

Show design in confirmation email



This method works for the basic email templates of Shopify. If you use third-party email, it might not work.

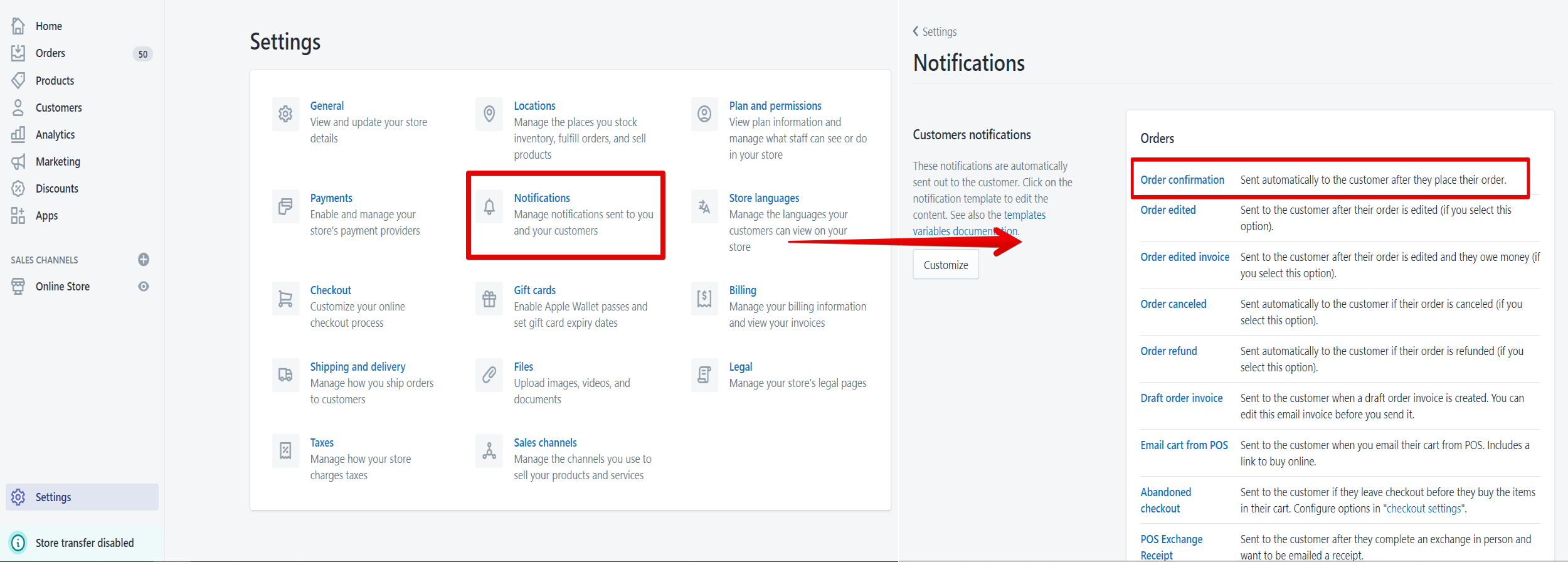

Step 1: Go to Shopify Settings > Notifications > Order confirmation

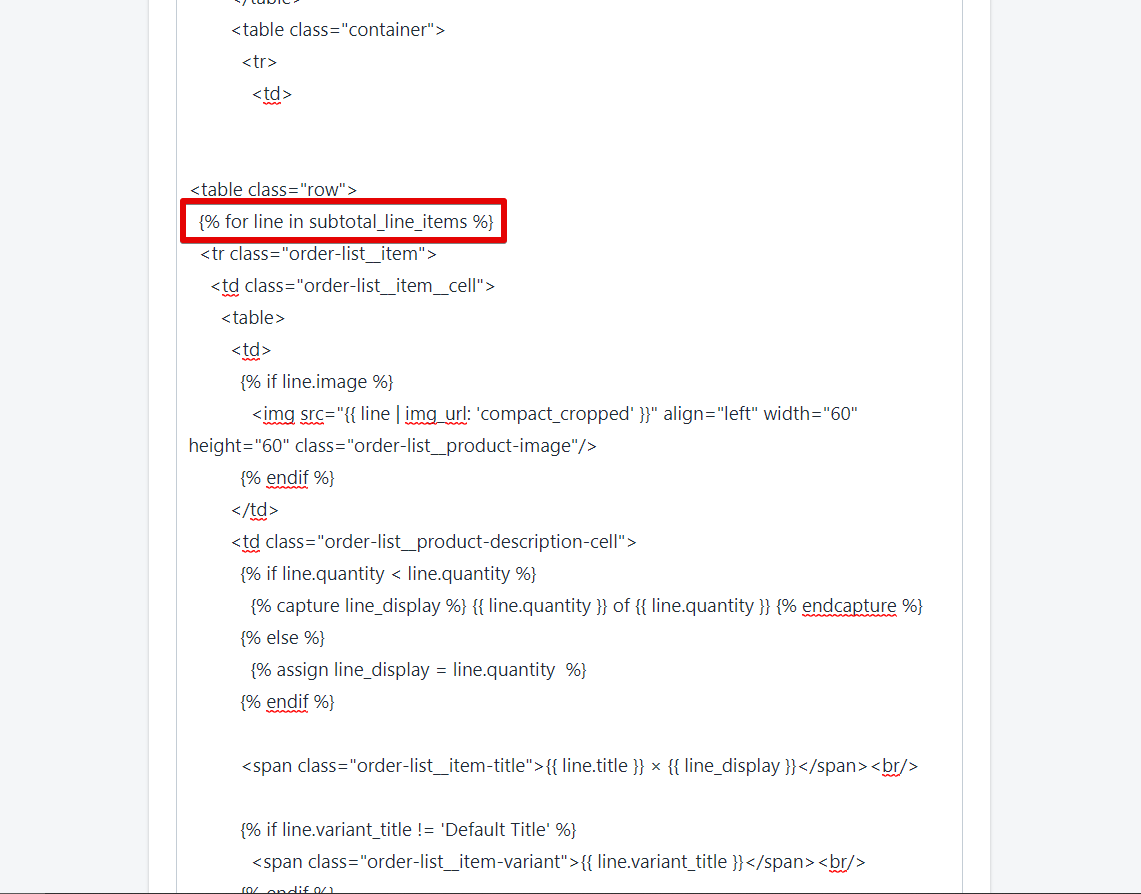

Step 2: Scroll down and look for a line "{% for line in subtotal_line_items %}"

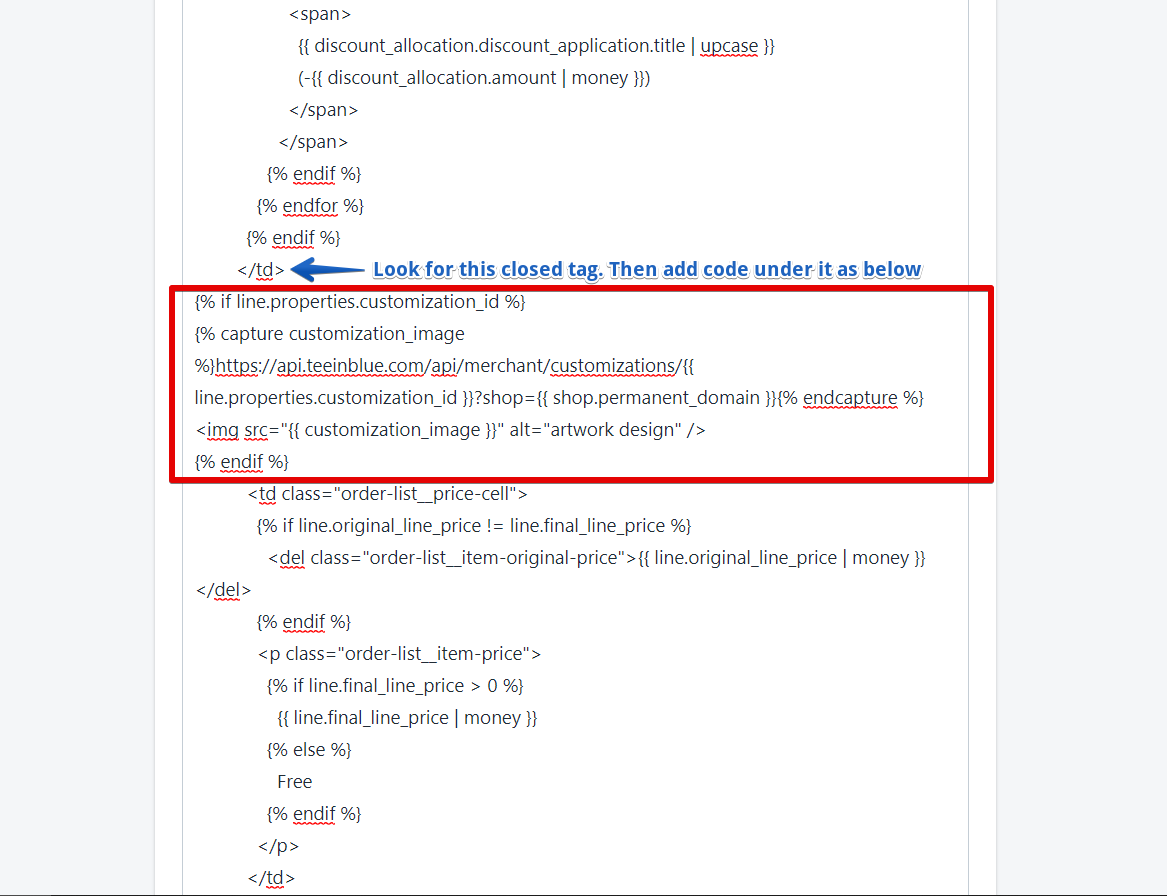

Step 3: Scroll down and find the closest </td> tag. Then add script code below under that tag.
{% if line.properties.customization_id %}
  {% capture customization_image %}https://cdn.teeinblue.com/customizations/{{ line.properties.customization_id }}.jpg{% endcapture %}
  <div>
    <img src="{{ customization_image }}" alt="artwork design" style="max-width: 100%; height: auto; vertical-align: middle;" />
  </div>
{% endif %}



Step 4: Remember to Save after editing email script


If you find difficult to follow this instruction, please contact us for further support.
